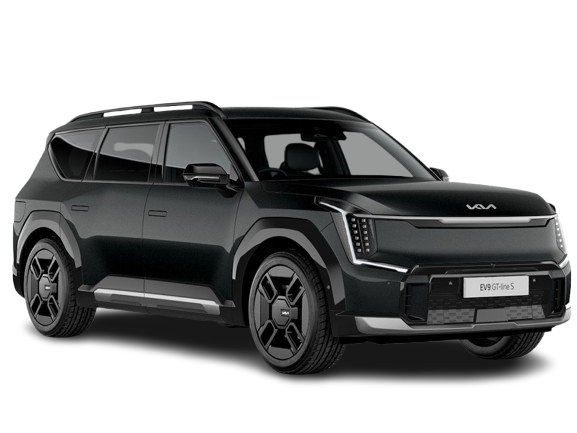

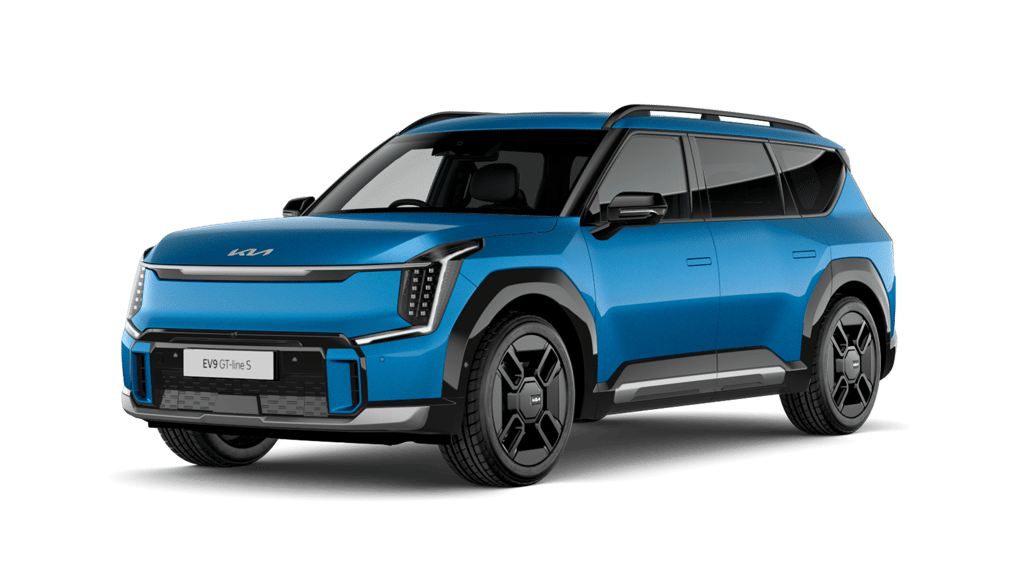

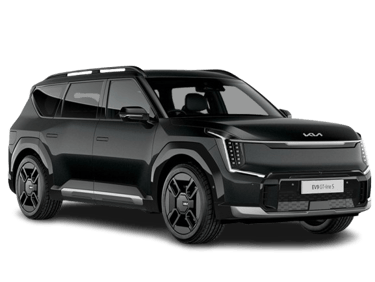

KIA EV9
Real Range Estimation
between 315 - 625 km
City: 625 km
Highway: 395 km
Combined: 490 km
Battery
Nominal Capacity 99.8 kWh
Battery Type Lithium-ion
Number of Cells 456
Architecture 800 V
Warranty Period 7 years
Warranty Mileage 150,000 km
Useable Capacity* 96.0 kWh
Cathode Material NCM
Pack Configuration 152s3p
Nominal Voltage 552 V
Form Factor Pouch
Name / Reference No Data
Performance
Acceleration 0 - 100 km/h 6.0 sec
Top Speed 200 km/h
Electric Range * 435 km
Total Power 283 kW (385 PS)
Total Torque 600 Nm
Drive AWD
Charging
Home / Destination
Charge Port Type 2
Port Location Rear Side - Right
Charge Power 11 kW AC
Charge Time (0->435 km) 10h30m
Charge Speed 42 km/h
Fast Charging
Charge Port CCS
Port Location Rear Side - Right
Charge Power (max) 209 kW DC
Charge Power (10-80%) 194 kW DC
Charge Time (43->348 km) 22 min
Charge Speed 830 km/h
Autocharge Supported Yes
Plug & Charge
Plug & Charge Supported Yes
Supported Protocol ISO 15118-2
Battery Preconditioning
Preconditioning Possible Yes
Automatically using Navigation Yes
Safety (Euro NCAP)
Safety Rating
Adult Occupant 84%
Child Occupant 88%
Rating Year 2023
Vulnerable Road Users 76%
Safety Assist 83%
Dimensions and Weight
Length 5010 mm
Width 1980 mm
Width with mirrors 2263 mm
Height 1755 mm
Wheelbase 3100 mm
Weight Unladen (EU) 2625 kg
Gross Vehicle Weight (GVWR) 3190 kg
Max. Payload 640 kg
Cargo Volume 333 L
Cargo Volume Max 2393 L
Cargo Volume Frunk 52 L
Roof Load 100 kg
Tow Hitch Possible Yes
Towing Weight Unbraked 750 kg
Towing Weight Braked 2500 kg
Vertical Load Max 125 kg
Miscellaneous
Seats 7 people
Isofix Yes, 4 seats
Turning Circle 12.4 m
Platform HMG E-GMP
EV Dedicated Platform Yes
Car Body SUV
Segment JF - Luxury
Roof Rails Yes
Heat pump (HP) Yes
HP Standard Equipment Varies by country
