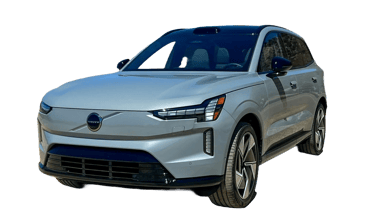

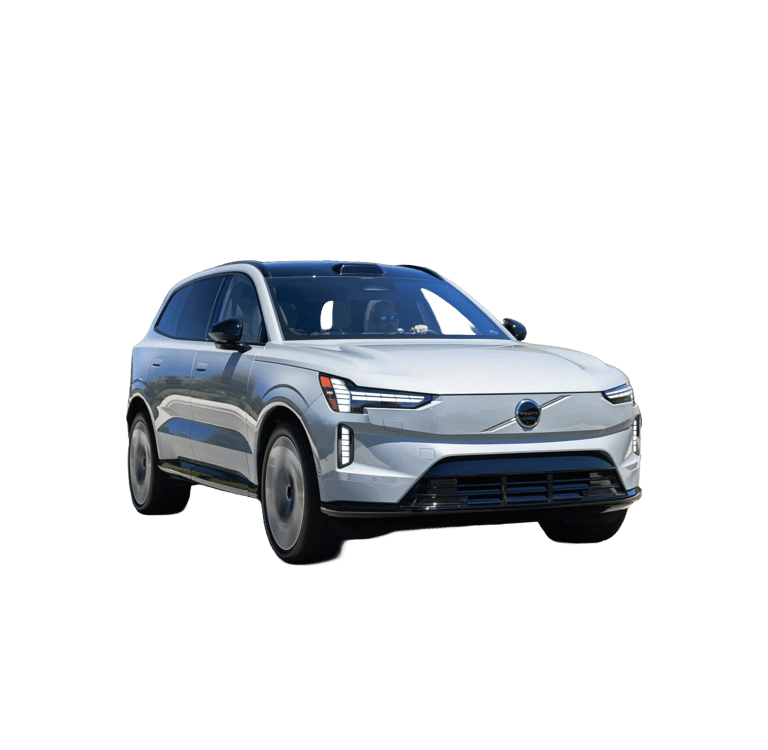

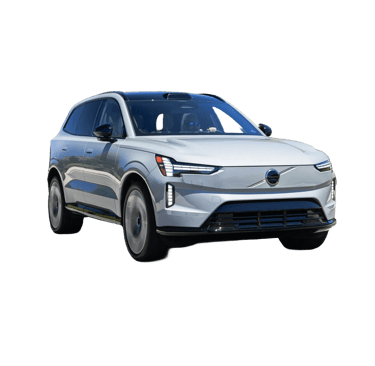

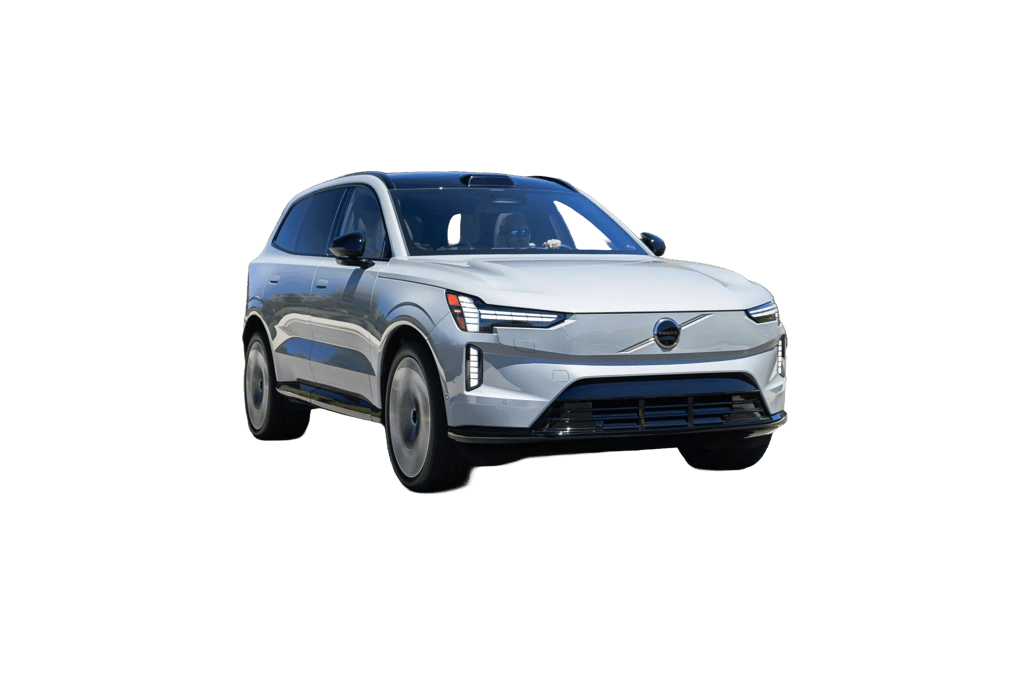

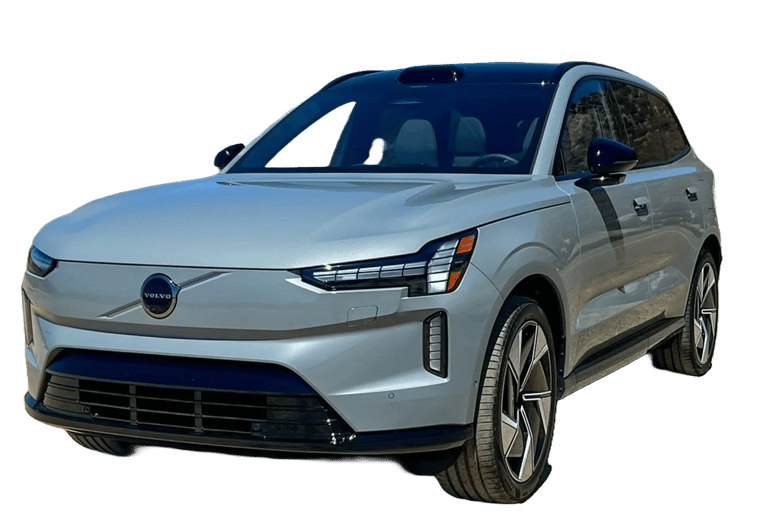

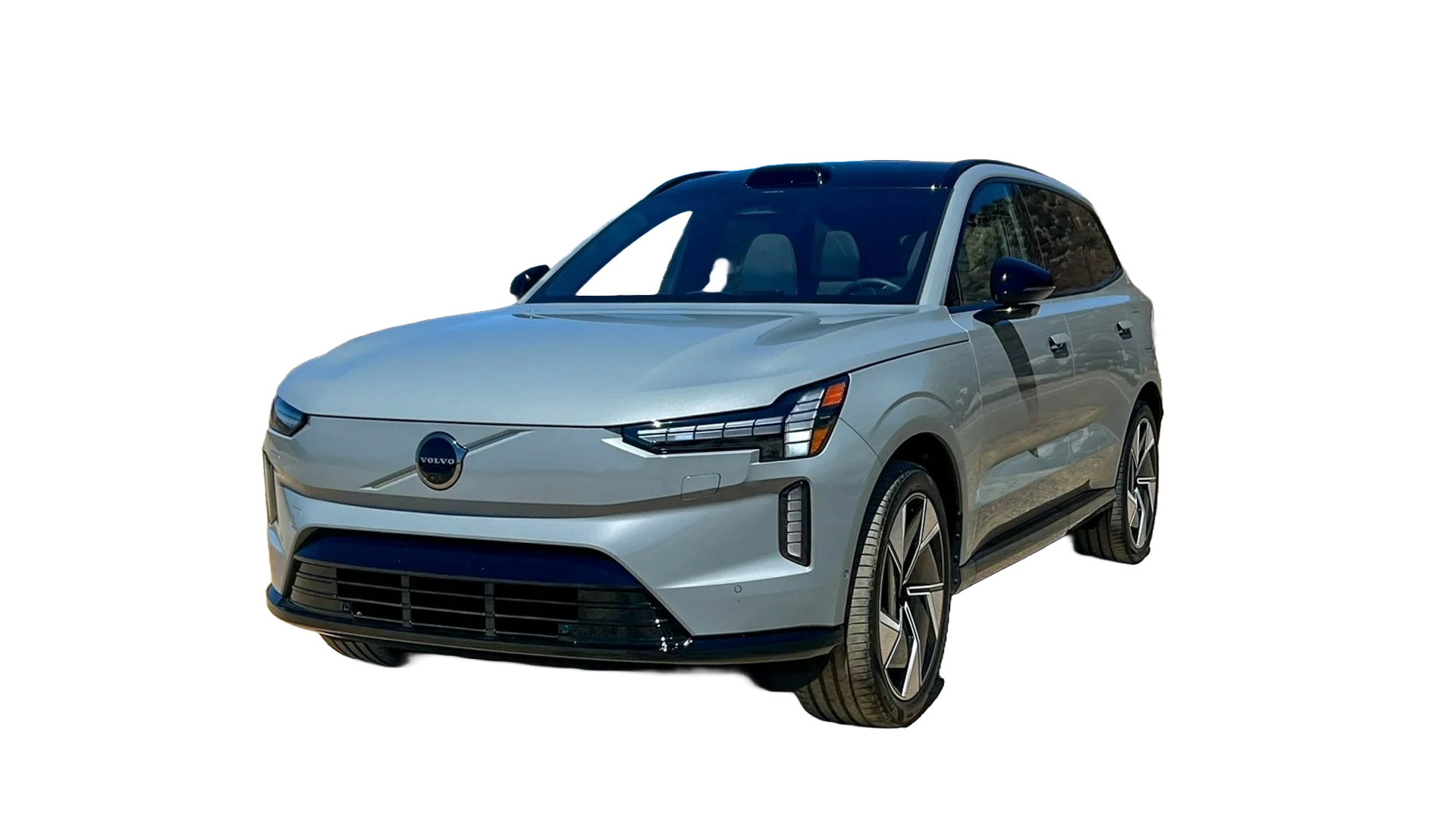

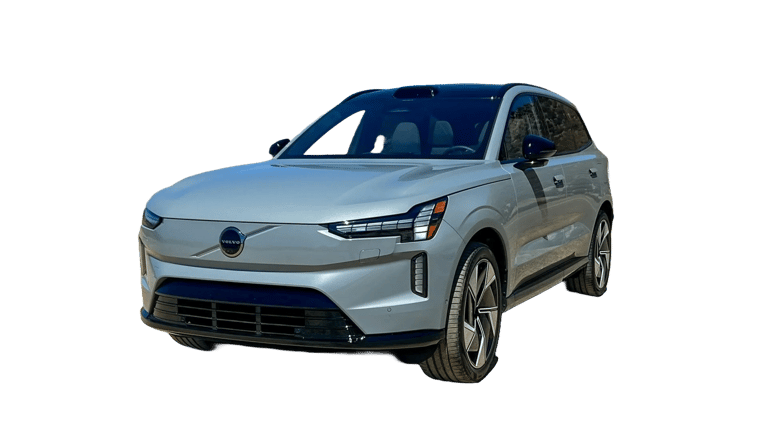

VOLVO EX90
Real Range Estimation
between 365 - 720 km
City: 720 km
Highway: 460 km
Combined: 570 km
Battery
Nominal Capacity 111.0 kWh
Battery Type Lithium-ion
Number of Cells 204
Architecture 400 V
Warranty Period 8 years
Warranty Mileage 160,000 km
Useable Capacity 107.0 kWh
Cathode Material NCM
Pack Configuration 102s2p
Nominal Voltage No Data
Form Factor No Data
Name / Reference No Data
Charging
Home / Destination
Charge Port Type 2
Port Location Left Side - Rear
Charge Power 11 kW AC
Charge Time (0->505 km) 11h30m
Charge Speed 44 km/h
Fast Charging
Charge Port CCS
Port Location Left Side - Rear
Charge Power (max) 250 kW DC
Charge Power (10-80%) 150 kW DC
Charge Time (50->404 km) 32 min
Charge Speed 660 km/h
Autocharge Supported Yes
Plug & Charge
Plug & Charge Supported Limited
Supported Protocol ISO 15118-2
Battery Preconditioning
Preconditioning Possible Yes
Automatically using Navigation Yes
Performance
Acceleration 0 - 100 km/h 5.9 sec
Top Speed 180 km/h
Electric Range 505 km
Total Power 300 kW (408 PS)
Total Torque 770 Nm
Drive AWD
Dimensions and Weight
Length 5037 mm
Width 1964 mm
Width with mirrors 2113 mm
Height 1744 mm
Wheelbase 2985 mm
Weight Unladen (EU) 2754 kg
Gross Vehicle Weight (GVWR) 3390 kg
Max. Payload 711 kg
Cargo Volume 310 L
Cargo Volume Max 1915 L
Cargo Volume Frunk 37 L
Roof Load 100 kg
Tow Hitch Possible Yes
Towing Weight Unbraked 750 kg
Towing Weight Braked 2200 kg
Vertical Load Max 100 kg
Miscellaneous
Seats 7 people
Isofix Yes, 4 seats
Turning Circle 11.8 m
Platform Volvo SPA2
EV Dedicated Platform Yes
Car Body SUV
Segment JF - Luxury
Roof Rails No
Heat pump (HP) Yes
HP Standard Equipment Yes
